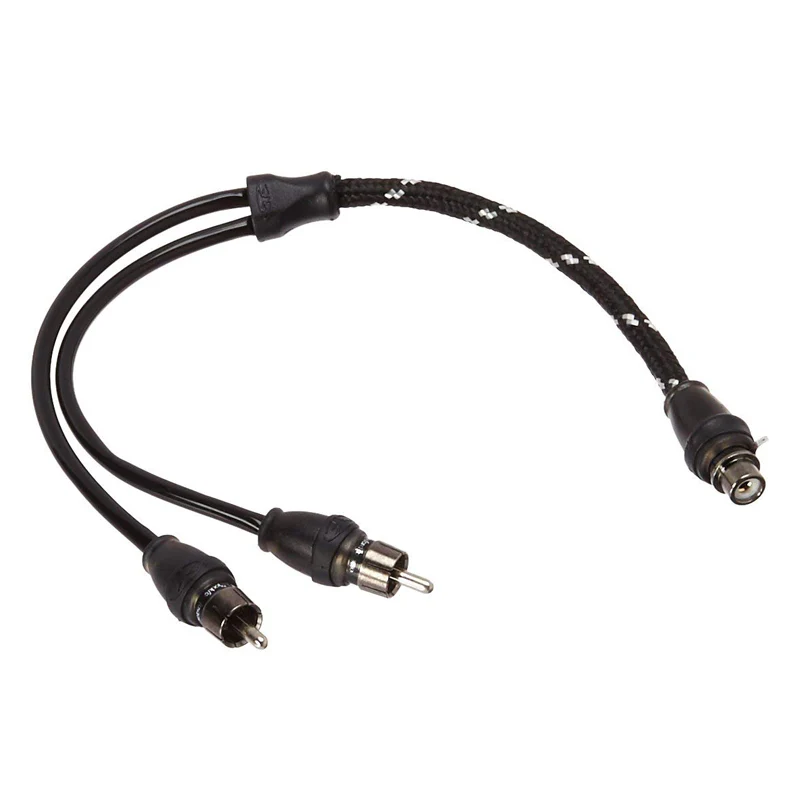

Rockford Fosgate RFITY-1F Premium Y-Adapter 1 Female To 2 Male
Premium RCA Y-Adapter 1 Female to 2 Male, Dual Twist Design, 6-Cut Connector, OFC, Platinum Ends, Woven Shield.
The Rockford Fosgate RFITY-1F is a premium 1-female-to-2-male RCA Y-adapter the upgraded counterpart to the standard RFIY-1F. The RFITY series introduces a dual twist design (versus single twisted pair on the RFIY series) for improved noise rejection, and a 6-cut connector in addition to the split center pin for a more secure multi-point contact at the RCA interface. OFC conductors, platinum-plated ends, and woven outer shield.
How It Differs From the Standard RFIY-1F
| Feature | RFIY-1F (Standard) | RFITY-1F (Premium) |
|---|---|---|
| Twist Design | Single twisted pair | Dual twist ✓ |
| Connector | Split center pin | 6-cut + split center pin ✓ |
| Shield | Frosted woven | Woven ✓ |
| Noise Rejection | RFI/EMI | RFI/EMI (enhanced) ✓ |
| Conductor | OFC | OFC |
| Plating | Platinum | Platinum |
Key Specifications
| Specification | Detail |
|---|---|
| Part Number | RFITY-1F |
| Type | Premium RCA Y-Adapter |
| Configuration | 1 Female to 2 Male ✓ |
| Conductor | OFC ✓ |
| End Plating | Platinum ✓ |
| Twist Design | Dual Twist ✓ |
| Connector | 6-Cut + Split Center Pin ✓ |
| Shield | Woven outer ✓ |
| Noise Rejection | RFI and EMI ✓ |
| Length | Not specified |
| Warranty | Not specified |
Features & Benefits
- Dual Twist Design — Two twisted conductor pairs rather than one — providing a higher level of common-mode noise cancellation than the standard single-twist RFIY series.
- 6-Cut Connector — Six longitudinal cuts on the RCA center pin barrel create six independent spring-contact fingers that expand against the female socket wall — distributing contact pressure evenly for a more secure, lower-resistance connection than a standard 2-cut split pin.
- Split Center Pin — In addition to the 6-cut barrel, the center pin retains the split tip for additional contact security.
- OFC Conductors + Platinum Ends — Full-spec signal path as per the standard RFIY series.
- Woven Outer Shield — Durable EMI shielding.
FAQs
What is the difference between the RFITY-1F and the RFIY-1F? The RFITY-1F is the premium version — it adds a dual twist design (vs single twisted pair) and a 6-cut connector (vs split pin only). Both are 1-female-to-2-male in configuration. Choose the RFITY-1F for installations where maximum noise rejection and the most secure connector engagement are priorities.
What does a 6-cut connector do? Six longitudinal cuts on the connector barrel create six independent spring-loaded contact fingers that press against the female socket from multiple points simultaneously — distributing contact force more evenly than a 2-cut split pin and producing a lower-resistance, more vibration-resistant connection.
What is the dual twist design? Two separately twisted conductor pairs within the cable — each pair twisting at a different pitch or direction — provide a higher degree of common-mode interference cancellation than a single twisted pair.
