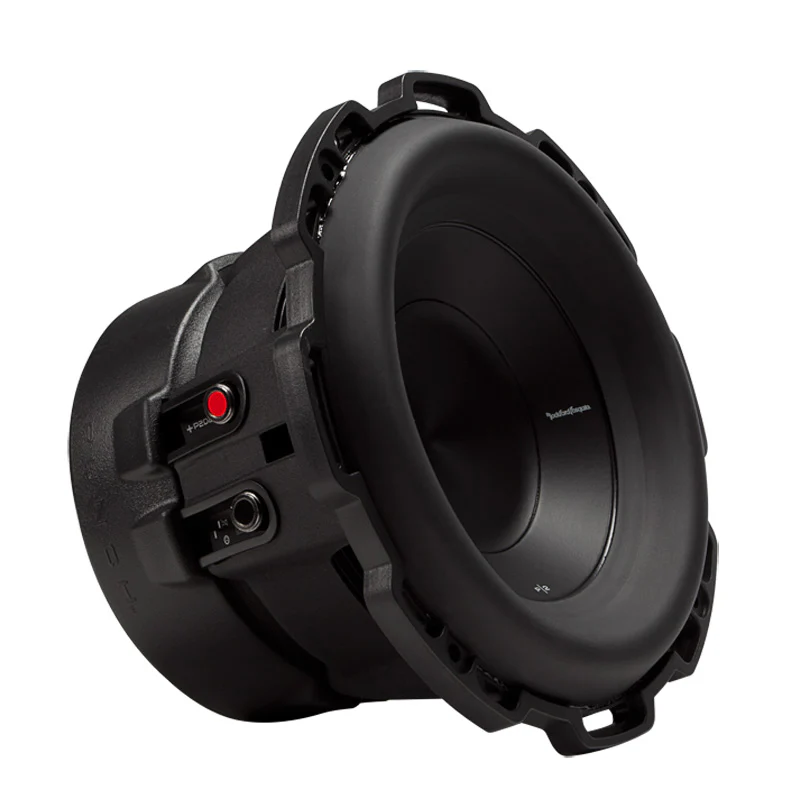

8" 2-Ohm DVC Punch P2 Subwoofer 250W RMS, Kevlar Cone, VAST, Dual Spider, Diamond-Cut Cast Aluminium Trim Ring, Extended Pole Piece.

---

Product Overview

The Rockford Fosgate Punch P2D2-8 is an 8" 2-Ohm Dual Voice Coil (DVC) subwoofer rated at 250W RMS from the Punch P2 series. The P2 introduces several construction refinements over the P1: a dual linear spider for improved suspension control, a diamond-cut cast aluminium trim ring (versus the rubberized ABS trim ring on the P1 series), and a DVC design for wiring flexibility. The 8" format suits tight-space and compact enclosure installations where a 10" or 12" driver would not fit, while still delivering 250W RMS bass output.

The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. P1-consistent construction elements confirmed: Kevlar fibre-reinforced paper cone, VAST surround (up to 25% increased cone area), high-temperature voice coil with spun-laced Nomex® reinforcement collar, extended pole piece with bumped vented backplate, StampCast basket with integrated spider venting, and 10-AWG nickel-plated push terminals. Optimised for sealed and vented enclosures. Sold as an individual unit.

---

Key Specifications

• Subwoofer size: 8 inch
• Voice coil configuration: Dual Voice Coil (DVC)
• Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp)
• Power handling (RMS): 250W (confirmed)
• Peak power: Not specified — confirm with Rockford Fosgate
• Surround technique: VAST (up to 25% increased cone area)
• Sensitivity: Not specified — confirm with Rockford Fosgate
• Frequency response: Not specified — confirm with Rockford Fosgate
• Xmax: Not specified — confirm with Rockford Fosgate
• Voice coil: High-temp, Nomex® reinforcement collar
• Cone: Kevlar fibre-reinforced paper
• Spider: Dual linear with embedded 16 AWG tinsel leads
• Basket: StampCast with integrated spider venting
• Pole piece: Extended
• Backplate: Bumped and vented
• Input terminals: 10-AWG nickel-plated push terminals
• Trim ring: Diamond-cut cast aluminium (grille insert compatible)
• Magnet cover: Protective PVC textured
• Enclosure compatibility: Sealed and vented ✓
• Mounting depth: Not specified — confirm with Rockford Fosgate
• Cutout diameter: Not specified — confirm with Rockford Fosgate
• Sold as: Individual unit
• Weight: Not specified — confirm with Rockford Fosgate
• Warranty: Not specified — confirm with Rockford Fosgate

---

Features & Benefits

• 8" Compact Format — Tight-Space Bass — The 8" driver is suited to compact enclosure builds, under-seat installations with a full-depth enclosure, and vehicles where a 10" or larger subwoofer cannot be accommodated. Despite its compact size, the P2D2-8 delivers 250W RMS — the same sustained power rating as the larger P1 and R2 subwoofers in this catalogue.
• 250W RMS — Confirmed 250W RMS. Appropriate for compact sealed or vented 8" enclosure builds with a matched mono amplifier.
• Dual Voice Coil (DVC) — Three Wiring Configurations:
  • 1-Ohm (parallel): Both coils in parallel — confirm amplifier is rated stable at 1-Ohm before using this configuration
  • 4-Ohm (series): Both coils in series — broad amplifier compatibility
  • 2-Ohm per coil (biamp): Each coil to a separate amplifier channel
• Diamond-Cut Cast Aluminium Trim Ring — A die-cast aluminium trim ring with a diamond-cut machined finish — a substantial step up in appearance and durability from the rubberized ABS trim rings used in the P1 series. The aluminium construction provides a rigid, premium-finish mounting frame.
• Dual Linear Spider — Two spiders rather than one provide increased mechanical damping and more consistent compliance at the extremes of the voice coil's excursion range — improving cone control at high output levels and reducing distortion under demanding bass conditions.
• Kevlar Fibre-Reinforced Paper Cone — Kevlar aramid fibres reinforce the paper cone for improved stiffness and breakup resistance at high output levels, while maintaining paper's natural damping and low mass.
• VAST — Up to 25% increased effective cone area at the same basket diameter.
• Nomex® Voice Coil Reinforcement Collar — Spun-laced Nomex reinforcement at the voice coil-to-cone junction for thermal and mechanical durability.
• Extended Pole Piece and Bumped Vented Backplate — Extended pole for increased Xmax; vented backplate eliminates air spring compression at high excursion.
• 10-AWG Nickel-Plated Push Terminals — Heavier gauge for lower contact resistance at 250W.
• StampCast Basket with Integrated Spider Venting — Motor cooling during sustained operation.

---

Technical Specs

---

Compatible With / Goes Well With

Suitable enclosure types:

• Sealed — tight, accurate bass
• Vented — higher efficiency at tuning frequency

Wiring:

• 1-Ohm → parallel (confirm amplifier 1-Ohm stability)
• 4-Ohm → series (broad compatibility)
• 2-Ohm per coil → biamp

Pairs well with:

• Rockford Fosgate T1000-1BDCP or T1500-1BDCP mono amplifiers — confirm RMS output at selected impedance

---

Frequently Asked Questions

What does the dual spider do that a single spider doesn't?

Two spiders provide greater mechanical damping and more consistent restoring force across the voice coil's full excursion range. At high excursion levels, a single spider's compliance can become less linear — introducing distortion and reducing cone control. The dual spider arrangement improves compliance linearity and mechanical stability at the extremes of the driver's travel.

What are the wiring options for the 2-Ohm DVC?

1-Ohm (parallel — requires amplifier rated stable at 1-Ohm), 4-Ohm (series — widely compatible), and 2-Ohm per coil for bi-amplification.

Is an 8" subwoofer suitable for serious bass output?

The P2D2-8 is rated at 250W RMS — the same as larger 10" and 12" subwoofers in this catalogue. The 8" cone moves less air per stroke than a 10" or 12", producing less output and higher frequency extension than larger formats. For an installation where space is the constraint and a small but powerful subwoofer is needed, the P2D2-8 is appropriate. For maximum output, larger formats are preferable where space permits.

What enclosure volume is recommended?

Not confirmed in the supplier data. Pull the official Rockford Fosgate P2D2-8 datasheet for sealed and vented volume recommendations. An 8" driver typically requires significantly less internal volume than a 10" or 12".

What makes the P2 trim ring different from the P1?

The P2D2-8 uses a diamond-cut cast aluminium trim ring — a machined aluminium finish with a faceted diamond-cut pattern for a premium appearance. The P1 series uses a rubberized ABS trim ring. The cast aluminium construction is more rigid and provides a higher-quality finish.
