Gator G173V Vehicle Specific Reverse Camera to Suit Fiat Ducato
Gator G173V Vehicle-Specific Reverse Camera for Fiat Ducato (2015–On)
A vehicle-specific brake light replacement reverse camera for the Fiat Ducato (2015–on) 170-degree 1/3-inch CCD with infrared LEDs, IP68, PAL, built-in microphone, 10m cable included.
Product Overview

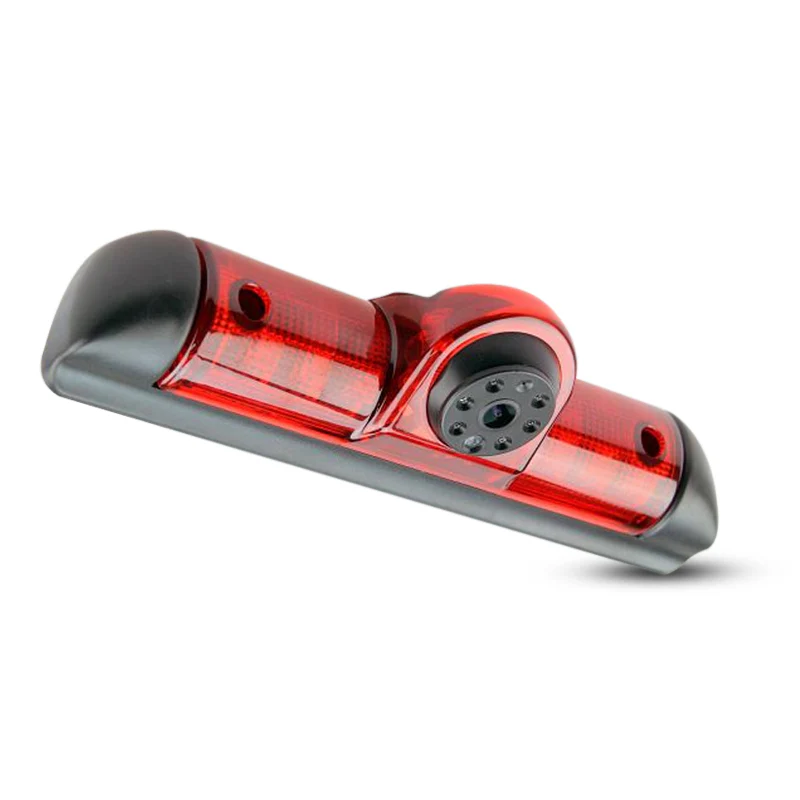

The Gator G173V is a vehicle-specific reverse camera for the Fiat Ducato (2015–on). It replaces the factory high-level brake light at the rear of the vehicle no drilling, discreet installation.
The 1/3-inch CCD sensor with integrated infrared LEDs provides 0 lux night vision. 170-degree wide-angle lens. IP68 rated. PAL RCA output. 10m cable kit included.
The built-in microphone outputs audio via the white RCA connector ambient sounds from behind the vehicle can be heard at a compatible display monitor.
Three Fiat Ducato cameras available: G159V (IP68, 170°, 2.5mm connector, no mic), G162V (5-in-1 with wireless controller, NTSC), and G173V (IP68, 170° CCD, built-in mic, 2015–on). See FAQ 4 for the comparison.
Features & Benefits
- Replaces factory high-level brake light — no drilling
- Fiat Ducato 2015–on specific
- 170-degree 1/3-inch CCD lens with infrared LEDs — 0 lux night vision
- IP68 rated — waterproof and weatherproof
- Built-in microphone — audio via white RCA (compatible monitors only)
- PAL output — compatible with PAL aftermarket monitors
- 10m cable kit included
- Operating temperature: –20°C to +70°C
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | G173V |
| Brand | Gator |
| Camera Type | Reverse |
| Image Sensor | 1/3" CCD |
| Lens Angle | 170 degrees |
| Video Standard | PAL |
| Monitor Connection | RCA (video) + RCA white (audio) |
| IP Rating | IP68 |
| Minimum Illumination | 0 lux (LEDs on) |
| Built-in Microphone | Yes (white RCA audio output — compatible monitors only) |
| Operating Voltage | 12V |
| Operating Temperature | –20°C to +70°C |
| Includes | Camera (0.7m cable to 4-pin male), 10m extension cable, connection cable (4-pin female to RCA video female + RCA audio female + DC female), male-to-male RCA splice, 1.45m DC power cable, instructions |
| Vehicle Compatibility | Fiat Ducato 2015–on |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Fiat Ducato 2015–on
Goes Well With:
- PAL-compatible aftermarket head units and monitors with RCA input
- Monitors with RCA audio input (for microphone feature)
- Gator GRCANFLT CANBUS filter (for CANBUS interference in Ducato)
Frequently Asked Questions
Does this camera retain the factory brake light function?
The G173V replaces the factory high-level brake light housing. Confirm with the F.A.E. team whether the brake light function is retained — retaining a functional high-level brake light is a legal requirement in Australia.
How does the built-in microphone work?
The G173V includes a built-in microphone that outputs audio via the white RCA connector. Connect the white RCA to the audio input on a compatible display monitor to hear ambient sounds from behind the vehicle. Not all monitors support audio input — confirm your monitor has an RCA audio input before relying on this feature.
Is the 10m cable sufficient for the Fiat Ducato?
The 10m total cable (0.7m camera lead + 10m extension) is sufficient for most standard and medium-wheelbase Ducato configurations. For long-wheelbase or Maxi variants, measure the routing distance before purchasing.
What is the difference between the G173V, G159V, and G162V — all Fiat Ducato cameras?
The G159V covers Ducato models with an Aptina ASX340 sensor (no confirmed year range), PAL/NTSC switchable, IP68, no microphone. The G162V is a 5-in-1 NTSC camera with wireless controller for 2006–2015 Ducatos. The G173V covers 2015–on Ducatos with a 1/3-inch CCD sensor, PAL only, and includes a built-in microphone. The G173V is the current-generation Ducato solution with the most complete feature set among the standard single-view cameras.
Does this camera fit Ducato-based motorhomes and campervans?
Yes — the G173V should fit Ducato-based motorhomes where the original high-level brake light housing remains accessible. Confirm with the F.A.E. team for conversions where the rear body structure may differ from the standard van.
