Aerpro AMDTO45 10" Multimedia Receiver Kluger Grande 2007-13
10" Wireless CarPlay for the Toyota Kluger Grande Factory Nav Replacement with Hazard Switch Included and Cosmetic Side Dials
Product Overview

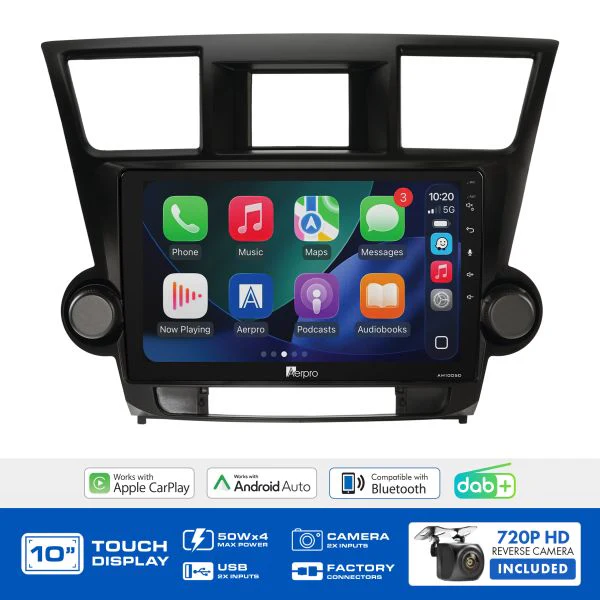

The Aerpro AMDTO45 is a complete head unit upgrade kit for the Toyota Kluger Grande (2007–2013) in non-amplified, factory navigation specification. It replaces the factory navigation head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls and the factory reverse camera where equipped.
This kit has two elements unique in the Aerpro range. First, a replacement hazard switch is included in the Kluger Grande of this era, the hazard switch is located within the head unit panel, so a standalone switch is required when the factory unit is replaced. Second, the facia includes cosmetic side dials that are decorative only and have no function; they are present to maintain the visual symmetry of the Kluger Grande's dash layout.
The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, hazard switch, and a 720P AHD universal rear camera. Factory amplifier retention is explicitly not applicable suits non-amplified Kluger Grande only.
Features & Benefits
- Hazard switch included — the Kluger Grande's hazard switch is housed within the factory head unit panel; this kit includes a replacement standalone hazard switch to restore this function after the factory unit is removed
- Cosmetic side dials — decorative only — the black facia kit includes side dials that replicate the visual appearance of the original Kluger Grande dash surround; these dials have no functional purpose and do not control any vehicle or head unit feature
- Factory navigation models only — specifically designed for Kluger Grande variants fitted with the factory navigation system
- Non-amplified variants only — factory-amplified Kluger Grande variants are not compatible with this kit
- SWC retained — the SWC interface harness and patch lead carry over factory Kluger steering wheel controls
- Factory reverse camera retained (if equipped) — the camera retention adaptor preserves the factory reverse camera signal via the head unit's reverse camera input
- Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
- Black vehicle-specific facia kit — matched to the Kluger Grande interior; designed to preserve the symmetry of the original dash layout including the non-functional side dials
- 10" capacitive touchscreen at 1024x600 resolution — significantly larger than the factory Kluger Grande navigation display
- Wireless Apple CarPlay & Android Auto — replaces the ageing factory navigation with real-time mapping via Google Maps, Apple Maps, or Waze; connect over Wi-Fi or via wired USB
- Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds or supplements reversing visibility
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 10" |
| Head unit model | AM1005D |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | Yes |
| Factory reverse camera | Yes (if equipped) — via camera retention adaptor |
| Factory AUX / USB | N/A |
| Parking tones | N/A |
| Vehicle menu | N/A |
| Factory amplifier | Not retained — non-amplified models only |
| Hazard switch | Replacement switch included in kit |
| Side dials (facia) | Cosmetic only — no functional purpose |
| Park brake requirement | Park brake wire must be connected for CarPlay/Android Auto |
Compatible With / Goes Well With
- Toyota Kluger Grande (2007–2013) with factory navigation — non-amplified variants only
- Not compatible with factory-amplified Kluger Grande variants
- Not compatible with non-Grande Kluger models from this era — different grades have different dash layouts and integration requirements
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Why is a hazard switch included in this kit?
In the Toyota Kluger Grande (2007–2013), the hazard warning light switch is built into the factory head unit panel rather than mounted separately on the dash. When the factory head unit is removed, the hazard switch goes with it. The AMDTO45 kit includes a replacement standalone hazard switch that is installed into the new facia, restoring the hazard light function after the swap.
What are the cosmetic side dials on the facia?
The black facia kit is designed to replicate the visual symmetry of the Kluger Grande's original dash surround, which featured knobs or dials flanking the head unit. The side dials on the AMDTO45 facia are purely decorative — they are present for aesthetic reasons and do not control any head unit or vehicle function.
Does the factory navigation system carry over?
No — the factory navigation maps and system are part of the original head unit and are not transferred. The AMDTO45 replaces them with wireless Apple CarPlay and Android Auto, which provide Google Maps, Apple Maps, and Waze with live traffic and real-time updates — a substantial improvement over the factory system.
Does this suit non-Grande Kluger models from this era?
No — the AMDTO45 is specifically designed for the Grande grade. Other Kluger grades from 2007–2013 have different dash layouts and head unit configurations. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific Kluger grade.
Why is the park brake wire required?
The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate.
