Aerpro AMDNI16 10" Multimedia Receiver Nissan Qashqai X-Trail
10" Wireless CarPlay for the Nissan Qashqai and X-Trail T32 SWC, Camera, USB and AUX Retained, Without Factory Navigation
Product Overview

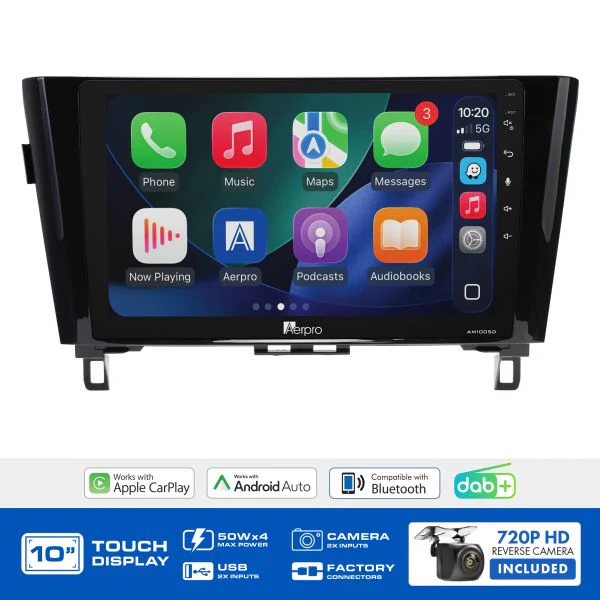

The Aerpro AMDNI16 is a complete head unit upgrade kit for the Nissan Qashqai (2021-on) and X-Trail T32 (2021-on) in non-navigation specification. It replaces the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls (including the phone button), factory reverse camera (if equipped), USB input, AUX input, and partial vehicle menu access (clock settings).
All factory feature retention is handled through a single specialised SWC Interface Harness with Camera, AUX & USB Retention, with no separate adaptors required. An antenna adaptor is also included for a complete installation.
Features & Benefits
- Covers both Qashqai and X-Trail T32 — a single kit addresses both 2021-on Nissan SUV platforms in non-navigation spec; confirm fitment for your specific year and variant using the Aerpro What Fits Your Car Guide
- All-in-one SWC interface harness — camera, AUX, and USB retention are all integrated into a single harness; no separate adaptors required
- SWC retained including phone button — all factory steering wheel controls carry over via the specialised harness
- Factory reverse camera retained (if equipped) — connected via the head unit's reverse camera input through the all-in-one harness
- Factory USB input retained — connected via the rear USB input on the head unit through the all-in-one harness
- Factory AUX input retained — connected via the RCA AUX input on the rear of the head unit through the all-in-one harness
- Vehicle menu retained — clock settings only — partial vehicle menu access is preserved after installation, limited to clock settings
- Intelligent Park Assist not retained — if your Qashqai or X-Trail is equipped with Intelligent Park Assist, this function will not be available after installation
- Without factory navigation models only — variants fitted with the factory navigation system require a different kit
- Gloss black vehicle-specific facia kit — matched to the 2021-on Qashqai and X-Trail T32 interior; antenna adaptor included for a complete installation
- 10" capacitive touchscreen at 1024x600 resolution — wide, responsive upgrade display
- Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
- Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds or supplements reversing visibility
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 10" |
| Head unit model | AM1005D |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | Yes (including phone button) |
| Factory reverse camera | Yes (if equipped) — via all-in-one harness |
| Factory USB input | Yes — via all-in-one harness |
| Factory AUX input | Yes — via all-in-one harness |
| Vehicle menu | Yes (clock settings only) |
| Intelligent Park Assist | Not retained |
| Parking tones | N/A |
| Factory amplifier | N/A |
| Factory navigation | N/A — suits non-navigation models only |
| Park brake requirement | Not specified |
Compatible With / Goes Well With
- Nissan Qashqai (2021-on) — non-navigation variants; confirm year and build using the Aerpro What Fits Your Car Guide
- Nissan X-Trail T32 (2021-on) — non-navigation variants; confirm year and build using the Aerpro What Fits Your Car Guide
- Not compatible with factory navigation variants of either model
- Data note: supplier description states "2021-on" for both models; the title and features section list "Qashqai (2021)" and "X-Trail (2021–2022)" — confirm fitment for your specific year using the Aerpro What Fits Your Car Guide
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Why does one kit suit both the Qashqai and X-Trail?
The 2021-on Qashqai and X-Trail T32 in non-navigation specification use sufficiently similar head unit mounting and wiring architectures that a single Aerpro kit can address both. The shared facia fitment, harness pinout, and retention adaptor paths make the AMDNI16 cross-compatible across both models in these specific build combinations.
What year ranges are actually covered — the supplier data has conflicting information?
The product description states "2021-on" for both models. The title and features section list "Qashqai (2021)" and "X-Trail (2021–2022)" — which implies tighter year-range limits. This is a discrepancy in the supplier's own data. Use the Aerpro What Fits Your Car Guide to confirm whether your specific model year is covered before purchasing.
Is the factory reverse camera retained on both the Qashqai and X-Trail?
Where fitted — yes. Not all non-navigation variants of either model are factory-equipped with a reverse camera. The all-in-one harness has camera retention capability built in, and it feeds through the head unit's reverse camera input. The 720P AHD rear camera included in the kit provides reversing visibility on models without a factory camera.
Does this suit models with factory navigation?
No — the AMDNI16 is specifically for non-navigation variants. Qashqai and X-Trail models fitted with factory navigation require a different kit. Use the Aerpro What Fits Your Car Guide to identify the correct kit for navigation-equipped builds.
What is Intelligent Park Assist and why isn't it retained?
Intelligent Park Assist (IPA) is Nissan's automated parking guidance system, available on higher-specification Qashqai and X-Trail variants. It uses the factory head unit interface to control the steering during parking manoeuvres. This function cannot be mapped to the aftermarket head unit and will not operate after installation, though any factory reverse camera continues to function normally.
