Aerpro AMDNI12 10" Multimedia Receiver Nissan Navara 2015-20
10" Wireless CarPlay for the Nissan Navara DX and RX SWC and Factory USB Retained
Product Overview

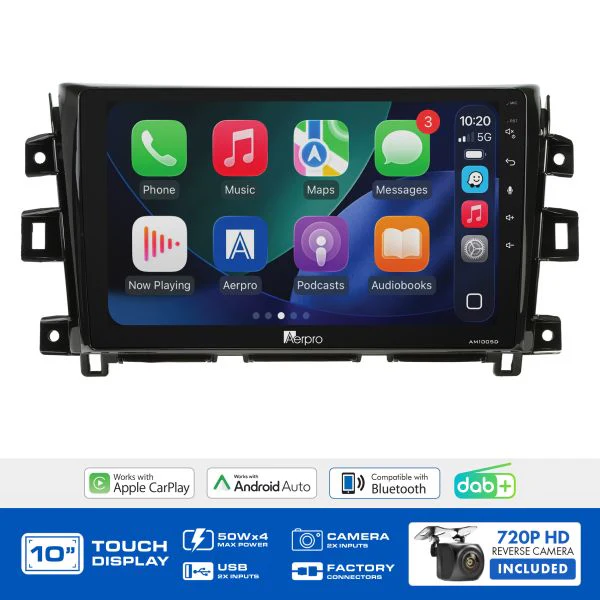

The Aerpro AMDNI12 is a complete head unit upgrade kit for the Nissan Navara D23 DX and RX variants (2015–2020). It replaces the factory head unit with a 10" capacitive touchscreen at 1024x600 resolution via the AM1005D multimedia receiver, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls (including the phone button) and the factory USB input.
The kit includes the AM1005D multimedia receiver, gloss black facia kit, SWC interface harness (which also integrates camera and USB retention capability), SWC patch lead, antenna adaptor, USB retention adaptor, and a 720P AHD universal rear camera. The DX and RX Navara variants do not have factory reverse cameras, so camera retention is not applicable for this kit.
Features & Benefits
- 10" capacitive touchscreen at 1024x600 resolution — significantly larger than the standard 9" display; the AM1005D gives the Navara DX/RX cabin a wide, responsive screen for navigation, media, and connectivity
- SWC retained including phone button — the SWC interface harness and patch lead carry over all factory Navara steering wheel controls including the phone button
- Factory USB input retained — the USB retention adaptor preserves the factory USB port via the head unit's rear USB input
- Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
- Gloss black vehicle-specific facia kit — matched to the Navara D23 DX/RX interior trim; antenna adaptor included for a complete installation
- DX and RX variants only — this kit is specified for the Navara DX and RX trim levels; other variants may require different kits
- Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
- Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the DX/RX Navara which does not have a factory reverse camera
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
- 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 10" |
| Head unit model | AM1005D |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | Yes (including phone button) |
| Factory USB input | Yes — via USB retention adaptor |
| Factory reverse camera | N/A — DX/RX not factory equipped |
| Factory AUX input | N/A |
| Parking tones | N/A |
| Vehicle menu | N/A |
| Factory amplifier | N/A |
| Park brake requirement | Park brake wire must be connected for CarPlay/Android Auto |
Compatible With / Goes Well With
- Nissan Navara D23 DX (2015–2020)
- Nissan Navara D23 RX (2015–2020)
- Not confirmed for Navara ST, ST-X, and Pro-4X variants — use the Aerpro What Fits Your Car Guide to identify the correct kit for other trim levels
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Do the Navara DX and RX have a factory reverse camera?
No — the DX and RX are the base and mid-entry trim levels of the D23 Navara and are not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
What factory USB input is retained and how?
The factory USB port in the Navara DX/RX is retained via the included USB retention adaptor, which connects to the rear USB input on the head unit. This preserves the factory USB connection point in the cabin after the head unit swap.
Is this a 9" or 10" screen?
10" — the AMDNI12 uses the AM1005D with a 10" capacitive touchscreen, which is larger than the standard 9" AM905D units used in most other Aerpro vehicle-specific kits.
Does this suit the Navara ST, ST-X, or Pro-4X?
This kit is specified for the DX and RX trim levels. Higher-specification Navara variants (ST, ST-X, Pro-4X) may have different factory equipment including reverse cameras and amplified audio that require different kits. Use the Aerpro What Fits Your Car Guide to find the correct kit for your specific variant.
Why is the park brake wire required?
The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate.
