Aerpro AMDMZ7 9" Multimedia Receiver Mazda 2 DE 2007-2014 SWC
9" Wireless CarPlay for the Mazda 2 DE SWC Models Only, Clean Factory Fit, AUX Not Retained
Product Overview

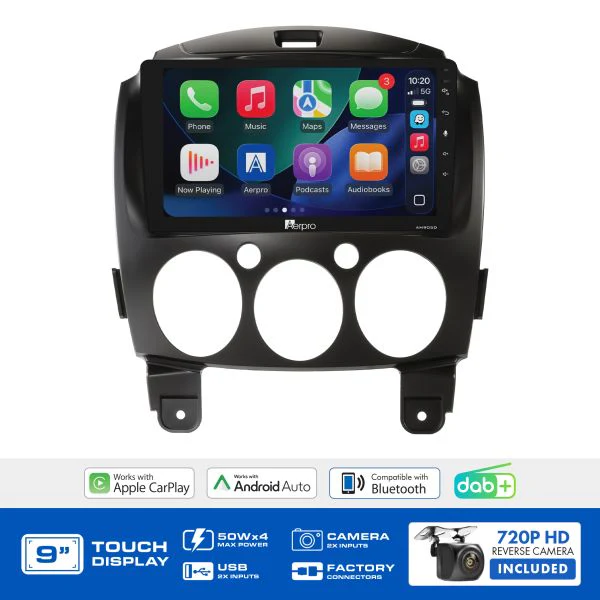

The Aerpro AMDMZ7 is a complete head unit upgrade kit for the Mazda 2 DE Series 1 and Series 2 (2007–2014) fitted with factory steering wheel controls. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining the factory SWC functionality.
The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that factory AUX input is not retained on this kit where the Mazda 2 DE is equipped with an AUX port, it will not carry over after installation.
Features & Benefits
- SWC-equipped models only — the AMDMZ7 is designed for Mazda 2 DE variants with factory steering wheel controls; the SWC interface harness and patch lead carry over all factory SWC functions after installation
- Factory AUX input not retained — where the Mazda 2 DE is fitted with a factory AUX port, it will not be retained after installation; CarPlay, Android Auto, and Bluetooth Audio replace the AUX input function
- Wireless Apple CarPlay & Android Auto — a significant upgrade for a compact city car that predates smartphone integration; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported
- 9" capacitive touchscreen at 1024x600 resolution — a large, responsive touch display in a compact vehicle; maps, media, and settings all accessible through a single screen
- Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- Black vehicle-specific facia kit — matched to the Mazda 2 DE interior trim for a clean, factory-finish installation
- Antenna adaptor included — ensures correct connection between the head unit and the Mazda 2 DE factory antenna
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle without factory reverse camera capability
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
- 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 9" |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | Yes |
| Factory AUX input | No |
| Factory reverse camera | N/A |
| Factory USB input | N/A |
| Vehicle menu | N/A |
| Factory amplifier | N/A |
| Dash modification | Not required |
| Park brake requirement | Not required |
Compatible With / Goes Well With
- Mazda 2 DE Series 1 (2007–2010) with factory steering wheel controls
- Mazda 2 DE Series 2 (2010–2014) with factory steering wheel controls
- Not compatible with Mazda 2 DE variants without factory steering wheel controls — a different kit is required
- Not compatible with Mazda 2 DJ (2014–2022) — a different platform requiring a different kit
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
How do I know if my Mazda 2 DE has steering wheel controls?
Mazda 2 DE models with SWC have buttons mounted on the steering wheel for controlling audio volume, track selection, and phone calls. If your steering wheel has no such buttons, your vehicle does not have SWC and this kit is not suitable.
Is the factory AUX input retained after installation?
No — the factory AUX input is not retained on the AMDMZ7, even on DE variants that have one fitted. CarPlay, Android Auto, and Bluetooth Audio via the head unit replace the AUX function.
Does this suit Mazda 2 DE variants without steering wheel controls?
No — the AMDMZ7 is designed for SWC-equipped DE variants only. DE models without SWC require a different kit. Use the Aerpro What Fits Your Car Guide to find the correct option.
Does this suit the Mazda 2 DJ (2014-2022)?
No — the AMDMZ7 covers the DE generation (2007–2014) only. The DJ is a different platform and requires a different kit.
Is there a difference in fitment between DE Series 1 and Series 2?
Both Series 1 (2007–2010) and Series 2 (2010–2014) are covered by the AMDMZ7 where SWC is fitted. There are no known fitment differences between the two series for this kit, but confirming with the Aerpro What Fits Your Car Guide for your specific build is always recommended.
