9" Wireless CarPlay for the Mitsubishi Triton and Challenger Full SWC, USB, and AUX Retention in One Kit

Product Overview

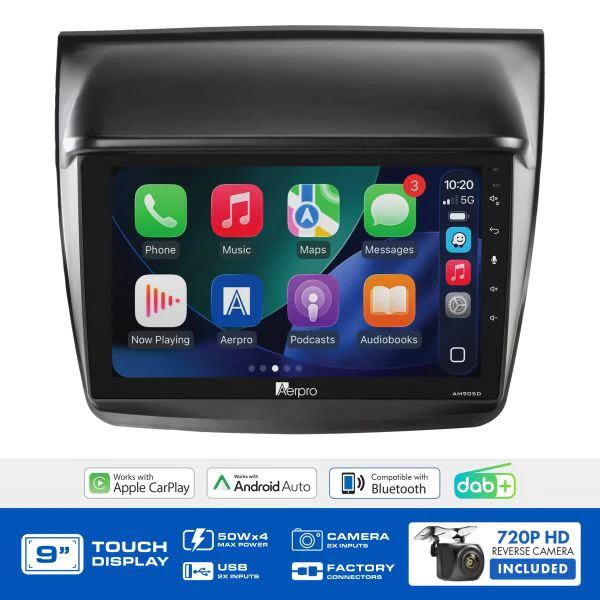

The Aerpro AMDMB26 is a complete head unit upgrade kit for the Mitsubishi Triton MN GL, GLX, and GLX-R (2015) and the Challenger PC (2013–2015). It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining steering wheel controls (including the phone button), factory USB input, and factory AUX input where equipped.

The kit includes the AM905D multimedia receiver, a black vehicle-specific facia kit, SWC interface harness, SWC patch lead, USB retention adaptor, and a 720P AHD universal rear camera. Neither the Triton nor Challenger comes factory-equipped with a reverse camera, so no camera retention adaptor is required the included 720P AHD camera adds reversing visibility fresh.

Features & Benefits

• Retains SWC including the phone button — the SWC interface harness and patch lead retain all factory steering wheel controls, including the phone button — no manual programming required for this variant
• Retains factory USB and AUX inputs (if equipped) — the USB retention adaptor preserves the factory USB port; AUX input is also retained on vehicles where fitted, using the head unit's RCA AUX input
• Park brake wire connection required — Apple CarPlay and Android Auto will not function unless the park brake wire is correctly connected to the park brake during installation
• Top display not retained on GLX-R and Challenger — buyers with a Triton GLX-R or Challenger should note the secondary top display will not carry over; Triton GL and GLX are not affected
• Wireless Apple CarPlay & Android Auto — connect your phone over Wi-Fi for maps, music, calls, and messages; wired connection also supported for simultaneous USB charging
• 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory Triton/Challenger display with smooth, responsive touch control
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets also included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles with no factory reverse camera
• Black vehicle-specific facia kit — matched to the Triton/Challenger interior; all mounting hardware included
• 4 x 50W max output with 5CH 4V RCA preouts — front, rear, and subwoofer channels at 4V peak for clean amplifier integration
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots; tune the soundstage to the Triton/Challenger cabin

Technical Specs

Compatible With / Goes Well With

• Mitsubishi Triton MN GL (2015)
• Mitsubishi Triton MN GLX (2015)
• Mitsubishi Triton MN GLX-R (2015) — top display not retained
• Mitsubishi Challenger PC (2013–2015) — top display not retained
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Which Triton and Challenger variants does this kit suit?

The AMDMB26 suits the Mitsubishi Triton MN GL, GLX, and GLX-R (2015) and the Challenger PC (2013–2015). Use the Aerpro What Fits Your Car Guide to verify your specific build before purchasing.

Why is the top display not retained on the GLX-R and Challenger?

The secondary top display (instrument cluster display) on the Triton GLX-R and Challenger is not compatible with the AMDMB26 installation. Triton GL and GLX variants do not have this limitation. Check your variant before purchasing if top display retention is important to you.

Why does the park brake wire need to be connected?

Apple CarPlay and Android Auto on this head unit require the park brake wire to be connected to the actual park brake. Without this connection, both CarPlay and Android Auto will not activate. This is a safety interlock built into the AM905D head unit.

Are the factory USB and AUX inputs retained?

Yes, if your vehicle is equipped with them. The USB input is retained via the included USB retention adaptor using the head unit's rear USB port. The AUX input is retained via the head unit's RCA AUX input on vehicles that have it fitted.

Does the Triton or Challenger have a factory reverse camera to retain?

No — neither the Triton MN nor the Challenger PC is factory-equipped with a reverse camera. The kit includes a 720P AHD universal rear camera to add reversing visibility from scratch.
