Aerpro AMDHY15 9" Multimedia Receiver Hyundai Getz 2002-2005
A Massive Connectivity Upgrade for the Hyundai Getz Wireless CarPlay, DAB+, and a Rear Camera on a Clean No-Retention Install
Product Overview

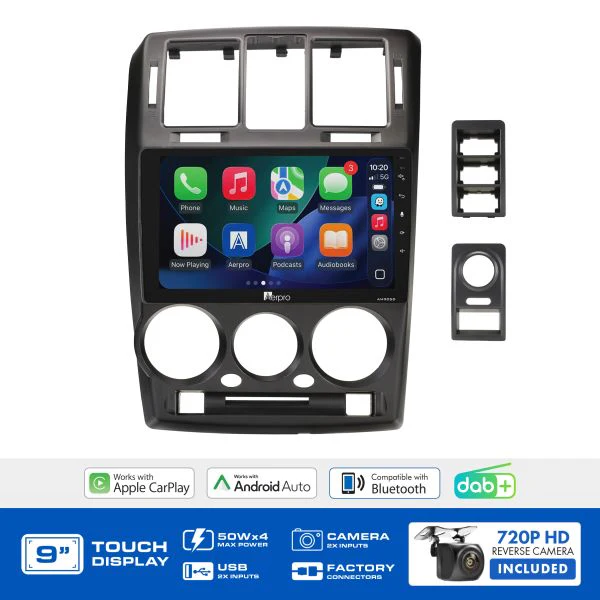

The Aerpro AMDHY15 is a complete head unit upgrade kit for the Hyundai Getz (2002–2005). The first-generation Getz was a no-frills entry-level hatchback no steering wheel controls, no factory reverse camera, no USB or AUX inputs to retain making this a clean, straightforward unit swap that brings wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to a vehicle that shipped with none of it.
The kit includes the AM905D multimedia receiver, matte black facia kit, wiring harness, and a 720P AHD universal rear camera. All factory feature retention fields are N/A, the install is a direct replacement with no integration complexity beyond connecting the park brake wire.
Features & Benefits
- Clean, no-retention install — the 2002–2005 Getz has no factory SWC, reverse camera, USB, AUX, or amplifier to retain; the installation is a direct unit swap with no integration harness complexity
- Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
- Matte black vehicle-specific facia kit — matched to the Getz's interior for a clean factory-finish installation
- Wireless Apple CarPlay & Android Auto — a transformative upgrade for an older entry-level vehicle; connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
- 9" capacitive touchscreen at 1024x600 resolution — a large, responsive display in a small car; maps, media, and Bluetooth managed through a single touch interface
- Built-in DAB+ digital radio — digital audio clarity and expanded station access well beyond what the original Getz radio could offer; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a reverse camera
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
- 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 9" |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | N/A — not factory equipped |
| Factory reverse camera | N/A — not factory equipped |
| Factory AUX / USB | N/A |
| Factory amplifier | N/A |
| Vehicle menu | N/A |
| Park brake requirement | Park brake wire must be connected for CarPlay/Android Auto |
Compatible With / Goes Well With
- Hyundai Getz (2002–2005)
- Buyers with a Getz outside this range should confirm fitment using the Aerpro What Fits Your Car Guide, as supplier metadata references the Getz range more broadly
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Does the Hyundai Getz have steering wheel controls to retain?
No — the 2002–2005 Getz was not factory-equipped with steering wheel controls. All feature retention fields for this kit are N/A, reflecting the simple factory specification of this generation. The installation is a direct head unit swap.
The supplier metadata mentions 2002-2011 — does this kit suit later Getz models?
The product title and description consistently state 2002–2005. The 2002–2011 reference in the supplier metadata may reflect the broader Getz production run in Australia. Buyers with a Getz outside the 2002–2005 range should use the Aerpro What Fits Your Car Guide to confirm whether this kit suits their specific build before purchasing.
Why is the park brake wire required for CarPlay?
The AM905D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate. This is a design requirement of the head unit.
Does the Getz have a factory reverse camera?
No — the 2002–2005 Getz is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
What is included in this kit?
The AMDHY15 includes the AM905D 9" multimedia receiver, matte black facia kit, wiring harness, and a 720P AHD universal rear camera. There is no SWC harness, antenna adaptor, or camera retention adaptor in this kit — none are required for the Getz of this era.
