Aerpro AMDFO9 9" Multimedia Receiver Ford Focus 2005-2009 Manual
9" Wireless CarPlay for the Ford Focus LS and LT Manual Climate Models Only, SWC Retained, Park Brake Required
Product Overview

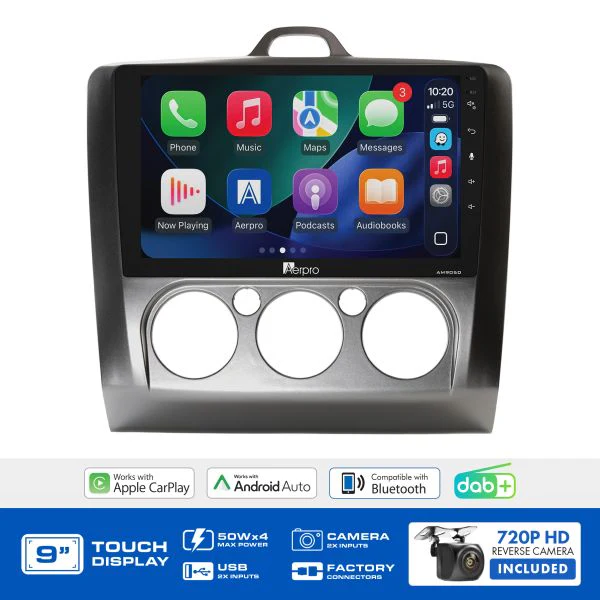

The Aerpro AMDFO9 is a complete head unit upgrade kit for the Ford Focus LS and LT (2005–2009) fitted with manual climate control. It replaces the factory head unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls.
The kit includes the AM905D multimedia receiver, silver facia kit, SWC interface harness, SWC patch lead, antenna adaptor, radio removal keys, and a 720P AHD universal rear camera. The Ford Focus LS/LT of this era does not have a factory reverse camera, USB input, AUX input, or factory amplifier to retain, so the installation is clean and straightforward beyond the SWC.
Features & Benefits
- Manual climate control models only — auto climate control variants are not compatible with this kit; for 2007–2011 Focus with auto climate, see the Aerpro AMDFO8
- SWC retained — the SWC interface harness and patch lead carry over factory steering wheel controls after installation
- Radio removal keys included — purpose-made keys for extracting the factory Focus head unit cleanly without damage to the surrounding trim
- Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
- Silver vehicle-specific facia kit — matched to the Ford Focus LS/LT interior; consistent with the facia finish used on the auto climate AMDFO8 kit for Focus
- Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
- 9" capacitive touchscreen at 1024x600 resolution — a large, responsive display upgrade over the factory Focus LS/LT unit
- Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
- Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
- 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a reverse camera
- 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
- 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots
Technical Specs
| Specification | Detail |
|---|---|
| Display size | 9" |
| Resolution | 1024x600 |
| Touchscreen type | Capacitive |
| OS | Linux |
| DIN size | Fixed Screen Style (Trapezoid) |
| Max power output | 4CH x 50W (4 ohm) |
| RCA preouts | 4V, 5-channel (Front / Rear / Subwoofer) |
| Preamp voltage | 4V p-p |
| EQ | 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz) |
| Preset EQs | 6 + 2 custom |
| Time alignment | Yes |
| Subwoofer level control | Yes |
| Smartphone connectivity | Apple CarPlay & Android Auto (wireless and wired) |
| Bluetooth version | V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP) |
| Microphone | Internal + external (with mount) |
| DAB | Yes |
| FM tuner range | 87.5–108.0MHz (0.05MHz step) / 18 presets |
| AM tuner range | 522–1710KHz (9KHz step) / 12 presets |
| RDS | Yes |
| USB1 (rear) | CarPlay / Android Auto + charging (5V / 1.5A) |
| USB2 (rear) | Media playback + charging (5V / 1.5A) |
| USB max capacity | FAT32 / 32GB |
| Media formats | MP3, MP4, MKV, FLAC, Xvid |
| Rear A/V input | RCA type (3 pcs) |
| Composite video output | Yes (x2) |
| Reverse camera input | Yes (720P AHD compatible) |
| Second camera input | Yes (720P AHD compatible) |
| Button illumination | 6-colour (Red, Yellow, Green, Blue, Purple, White) |
| OSD language | English |
| Rear Camera (AHD) | |
| Image sensor | Sony 225, 1/3" CMOS AHD |
| Lens angle | 150° |
| Mount type | Surface mount |
| Feature Retention | |
| Steering wheel controls | Yes |
| Factory reverse camera | N/A — not factory equipped |
| Factory AUX / USB | N/A |
| Factory amplifier | N/A |
| Vehicle menu | N/A |
| Park brake requirement | Park brake wire must be connected for CarPlay/Android Auto |
| Climate control requirement | Manual only — auto climate not compatible |
Compatible With / Goes Well With
- Ford Focus LS (2005–2007) with manual climate control
- Ford Focus LT (2007–2009) with manual climate control
- Not compatible with Ford Focus LS/LT fitted with auto climate control — see Aerpro AMDFO8 for Ford Focus 2007–2011 auto climate
- Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
- Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
- Second camera input supports an optional front or towing camera (720P AHD compatible)
Weight
Not specified
Frequently Asked Questions
Does this suit the auto climate control Ford Focus?
No — the AMDFO9 suits manual climate control Focus LS/LT models only. For the Ford Focus with auto climate control (2007–2011), the Aerpro AMDFO8 is the correct kit.
Does the Ford Focus LS/LT have steering wheel controls?
Yes — the Focus LS and LT were available with factory SWC, and this kit retains those controls via the SWC interface harness and patch lead.
How does this differ from the AMDFO8?
The AMDFO8 covers the Ford Focus 2007–2011 with auto climate control; the AMDFO9 covers the Ford Focus LS/LT 2005–2009 with manual climate control. The AMDFO9 also includes a park brake wire requirement for CarPlay/Android Auto that the AMDFO8 does not specify. Both use a silver facia and radio removal keys.
Does the Ford Focus LS/LT have a factory reverse camera?
No — the Focus LS and LT are not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
Why is the park brake wire required for CarPlay to work?
The AM905D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate — this is a design requirement of the head unit, not a vehicle limitation.
