Complete 9" Head Unit Upgrade Kit for Holden Cruze with MyLink 2009–2016 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Infodaptor Interface, SWC Phone Button, Parking Tones, Vehicle Menu & Factory Reverse Camera Retained.

Product Overview

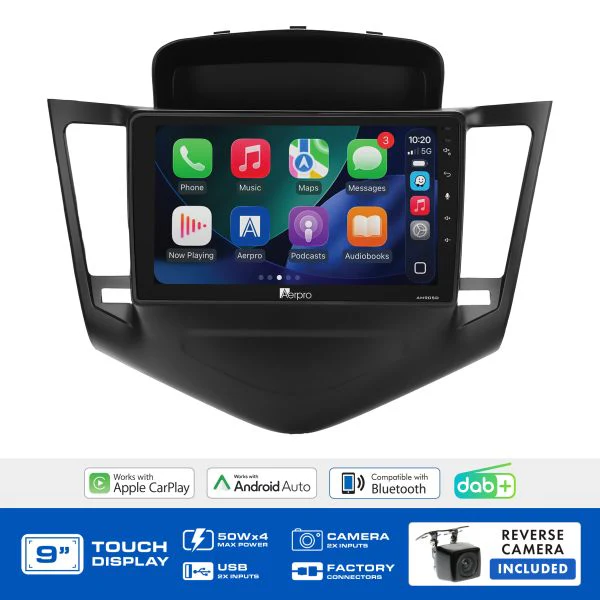

The Aerpro AMDGM2 is a complete head unit upgrade kit specifically designed for the Holden Cruze (2009–2016) with factory MyLink system. This kit features the Aerpro Infodaptor Interface a purpose-built harness that allows vehicle information to be displayed and accessed on the aftermarket head unit, retains steering wheel controls (including the phone button), retains parking tones, retains the factory reverse camera (if equipped), and provides access to the vehicle menu including climate control and parking visualisation on the aftermarket display (if equipped).

Everything required for installation is included the AM905D multimedia receiver, black fascia kit, Infodaptor interface harness, SWC patch lead, antenna adaptor, and a surface mount camera with 6m video cable. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

AM905D 9" Multimedia Receiver
Black Fascia Kit
Infodaptor Interface Harness
SWC Patch Lead
Antenna Adaptor
Surface Mount Camera (with 6m RCA cable and in-line reverse trigger)

Key Specifications

Screen: 9" capacitive touchscreen 1024x600 resolution
Wireless CarPlay & Android Auto: Yes (wired also supported)
DAB+ digital radio: Yes (AM/FM with RDS also included)
Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Max power output: 4 x 50W
RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
13-band EQ and time alignment: Yes
USB inputs: 2 x rear USB (FAT32 / 32GB max)
Reverse camera input: Yes (AHD compatible)
Second camera input: Yes
LED button illumination: 6-colour selectable
Camera: Surface mount, 110° FOV, IP67, 6m cable, optional parking guidelines

Features & Benefits

Infodaptor Interface: Allows vehicle information including climate control and parking visualisation to be displayed on the aftermarket head unit a key feature for MyLink-equipped Cruze models
Parking tones retained: Factory parking tones retained via the Infodaptor, if equipped
Vehicle menu retained: Access to the vehicle menu including climate control on the aftermarket display, if equipped
Factory reverse camera retained: Existing factory reverse camera retained via the Infodaptor, if equipped
Steering wheel controls retained including phone button: Full SWC including phone button retained via the SWC patch lead
Surface mount camera included: 110° field of view, IP67, optional parking guidelines, mountable as front, rear, or reverse camera with 6m RCA cable and in-line reverse trigger
Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
9" capacitive touchscreen: Large, smooth 1024x600 display
4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification	Detail
SKU	AMDGM2
Brand	Aerpro
Screen Size	9"
Resolution	1024x600
Touchscreen	Capacitive
OS	Linux
DIN Format	Fixed Screen Trapezoid
Max Power	4CH x 50W
RCA Preouts	4V / 5-channel
Wireless CarPlay/Android Auto	Yes
DAB+	Yes
AM/FM Presets	AM 12 / FM 18
Bluetooth	V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs	2 x Rear (FAT32 / 32GB max)
Reverse Camera Input	Yes
Second Camera Input	Yes
EQ	13-band
Time Alignment	Yes
LED Illumination	6-colour selectable
SWC Retained	Yes (including phone button)
Factory Reverse Camera Retained	Yes (if equipped)
Parking Tones Retained	Yes (if equipped)
Vehicle Menu Retained	Yes
USB Input Retained	No
Infodaptor Interface	Yes low resolution output
Kit Includes Camera	Yes Surface mount, 110°, IP67, 6m cable
Weight	3.00kg
Suits	Holden Cruze JG/JH 2009–2016 with MyLink (headunit dependent)

Compatible Vehicles

Holden Cruze 2009–2016 JG, JH (headunit dependent MyLink only)

Frequently Asked Questions

What is the Infodaptor Interface?

The Infodaptor is a purpose-built interface harness that connects the factory MyLink system to the aftermarket head unit allowing vehicle information such as climate control and parking visualisation to be displayed on the new screen, while retaining SWC, parking tones, and factory reverse camera. The Infodaptor connects to the rear camera input; the output will be low resolution.

Does this kit retain parking tones and the vehicle menu?

Yes parking tones (if equipped) and the vehicle menu including climate control and parking visualisation (if equipped) are all retained via the Infodaptor Interface.

Is the output from the Infodaptor Interface high resolution?

No the Infodaptor Interface connects to the rear camera input on the head unit and the output will be low resolution.

Does this kit retain the factory USB input?

No factory USB input retention is not supported by the AMDGM2.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
